温度冲击试验箱的要求:
采用高温箱和低温箱进行冷热冲击试验,以提供试验样品经受周围空气温度急剧发生变化的环境温度.
高温区的要求,应符合GJB150.3-86《军用设备环境试验方法高温试验》的第3章各条所规定的要求.                                                                                                                                                                                                                                                         低温区的要求，应符合GJB150.4-86《军用设备环境试验方法低温试验》的第3章各条所规定的要求.
冷热冲击箱提供高温试验部分和低温试验部分,应分别符合GJB150.3-86和GJB150.4-86的第3章各条所规定的要求。
试验箱的容积应保证在试验样品放入候补超过试验温度保持时间的10%就能使试验箱温度达到GJB150.1-89中3.2条规定的试验条件容差范围之内。

型号:WDCJ-500    工作室尺寸D×W×H ：800×800×800      吊篮尺寸：650×650

1、温度范围：－20℃～150℃、－40℃～150℃、－60℃～150℃
2、高温蓄热箱： 50℃～200℃
3、低温蓄冷箱：－20～10℃、－40～10℃、－60～10℃
4、温度波动度：±1℃
5、温度误差：不大于±2℃
6、预冷下限温度：≤-65℃
7、工作室冲击温度：－60℃～200℃
8、温度恢复时间：≤5min
9、本冲击试验箱符合：
   GJB150.3－86  GJB150.4－86  GJB150.5－86
10、全自动换气装置.清洁无污染
11、应用冷热风路切换方式导入试品区中，做冷热冲击测试
12、具备全自动，高精度系统回路，任一机件动作，完全由P.L.C. 锁定处理。（冲击方式为三箱式冷热冲击）

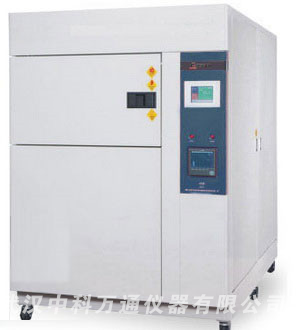

冷热冲击试验机结构

1、试验箱结构形式：试验箱采用整体式组合结构形式，既试验箱由位于上部的高温试验箱，位于下部的低温试验箱体、位于后部的制冷机组柜和位于左侧后板上的电器控制柜（系统）所组成。此方式箱体占地面积小、结构紧凑、外形美观，制冷机组置于独立的机组箱体内，以减少制冷机组运行时的震动、噪声对试验箱的影响，同时便于机组的安装和维修，电器控制面板置于试验箱的左侧板上以便于运行操作。
2、箱体外壁材料：优质碳素钢板，表面作静电彩色喷塑处理。                                                                                                                                                                                                                                                                                                                      3、箱体内壁材料：进口SUS304不锈钢板，耐腐蚀、易清洗、美观大方。
4、保温材料：优质超细玻璃纤维棉。

执行与满足的标准：
1、GB/T2423.1-1989低温试验方法；                                                                                                                                                                                                                                                                                                                                                                 2、GB/T2423.2-1989高温试验方法；                                                                                                                                                                                                                                                                                                                                                                3、GB/T2423.22-1989温度变化试验；                                                                                                                                                                                                                                                                                                                                                               4、GJB150.5-86温度冲击试验；                                                                                                                                                                                                                                                                                                                                                                         5、GJB360.7-87温度冲击试验；                                                                                                                                                                                                                                                                                                                                                                          6、GJB367.2-87 405温度冲击试验；
